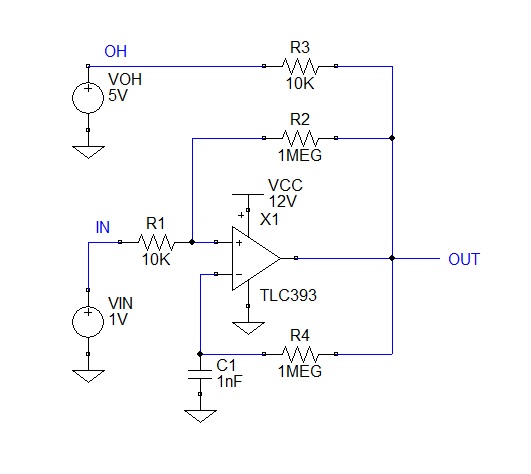

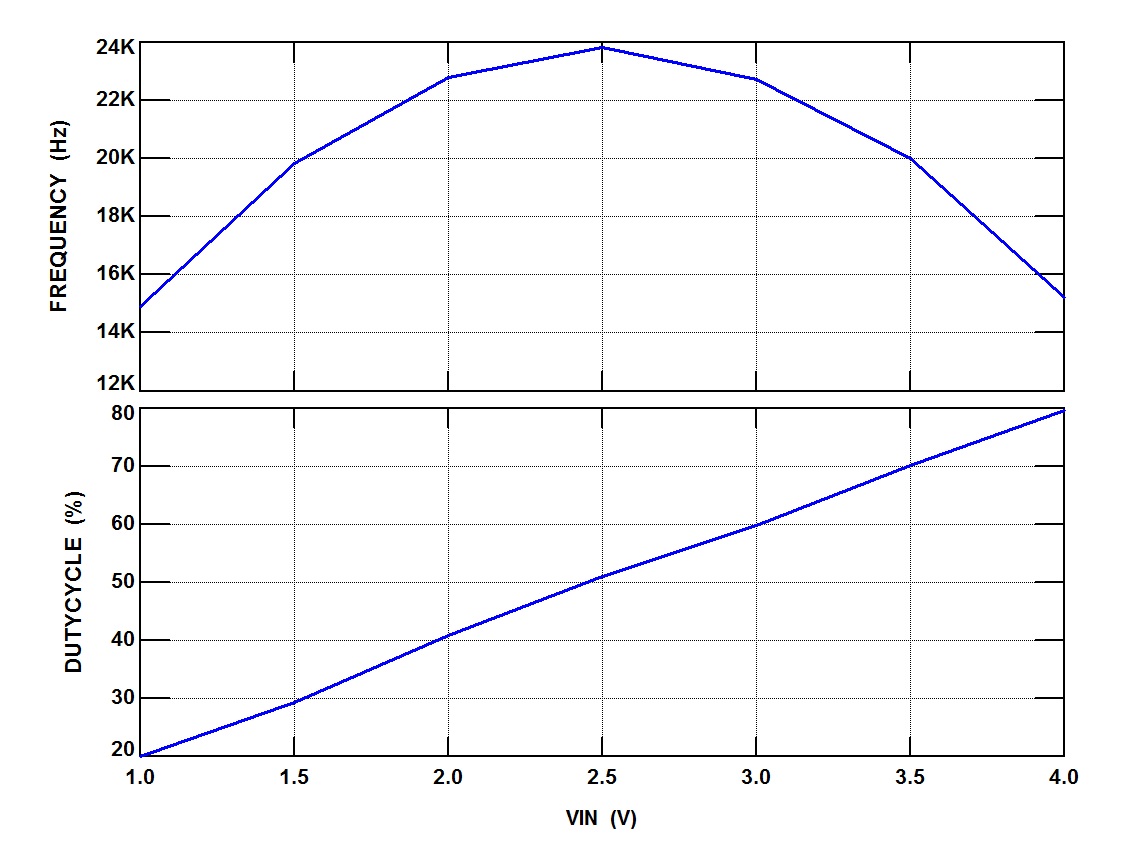

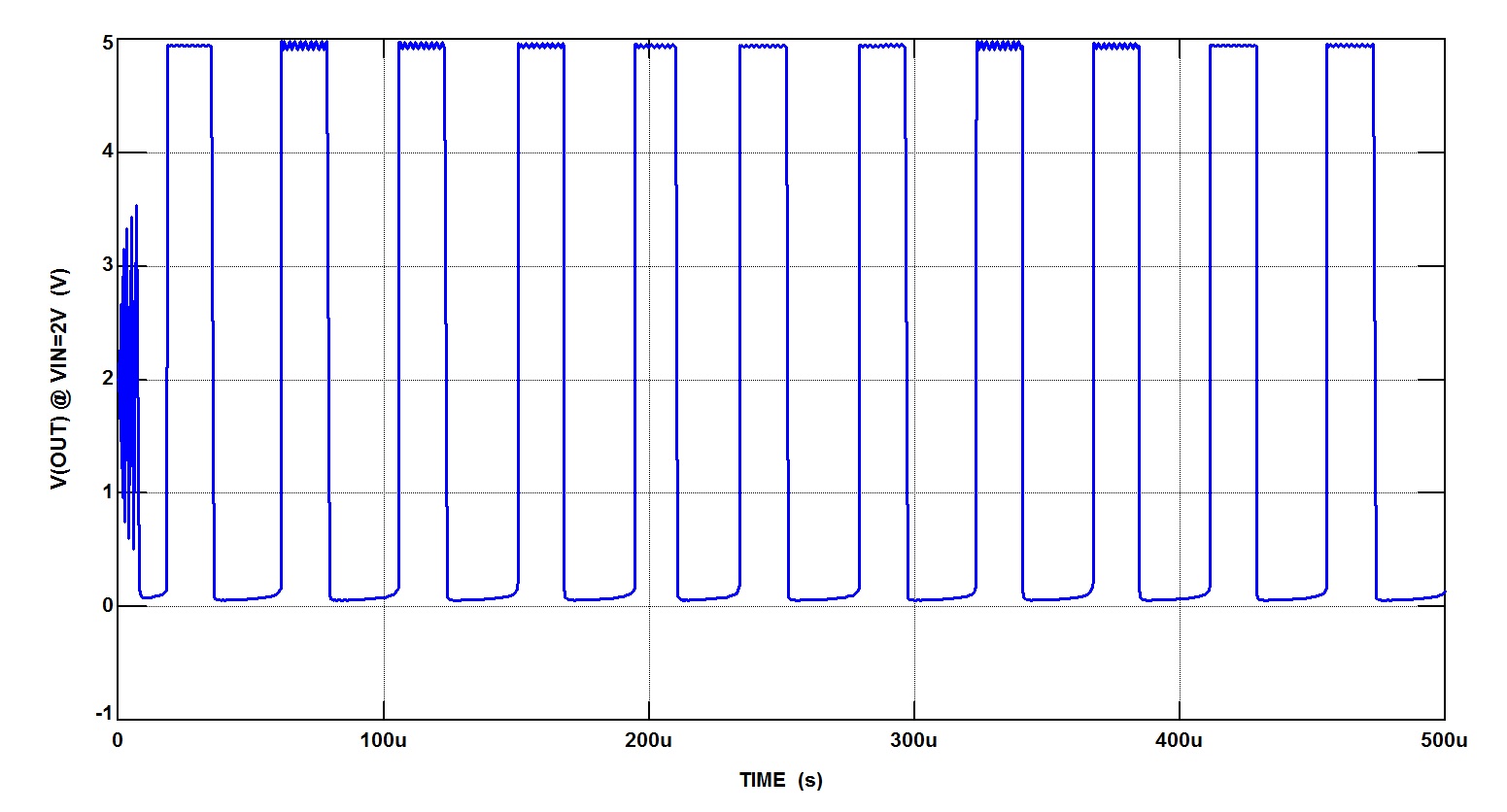

SPICE simulation of one op amp PWM circuit. The frequency and duty cycle as functionn of the input control voltage are measured using #MEASURE commands.

Simulator: TopSpice 8+
Full version required: No
